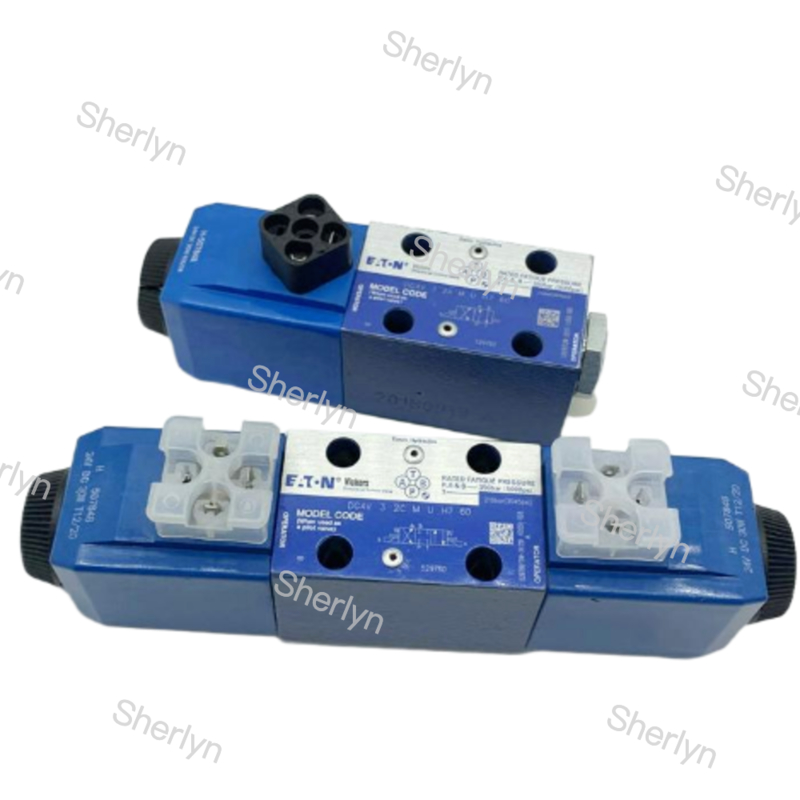

VICKERS Solenoid Valve DG4V-3-6C-M-U-H7-60

Product Description:

The core design goal of the DG4V series solenoid valve is to efficiently and reliably control the direction of hydraulic oil flow, thereby driving the action of actuating components such as oil cylinders and hydraulic motors. Its main technical features and attributes include:

• High working pressure and flow rate: The maximum working pressure of this series of valves can reach 350 bar (approximately 5075 psi), and the maximum pressure in the fuel tank pipeline is 210 bar (approximately 3045 psi). The rated flow can reach 80 L/min and 40 L/min respectively at a pressure of 350 bar, which can efficiently control large hydraulic power.
• Compliant with international standards and compact design: The installation interface complies with ISO 4401-03 standard, ensuring interchangeability and compatibility with other hydraulic components. The valve adopts a compact design with high power/weight ratio and power/volume ratio, which helps to save installation space and costs.
• Excellent durability and reliability: The valve core adopts a stainless steel structure, which improves the anti-corrosion ability. The standard configuration of the seal is Viton, which can adapt to various oils (including petroleum based oils, water ethylene glycol, water in oil emulsions, and phosphate ester oils and their mixtures). Nitrile rubber (NBR) seal can be used as option 15. Its fatigue life and durability have been verified through over 20 million cycles of testing.
• Easy to install and maintain: The coil can be quickly replaced without disassembling the valve or leaking hydraulic oil. Can work with Eaton's SystemStake ™ Combination of stacked valves and base plates to build a compact system.

Order Codes:
DG4V-3-2C-M-U-H7-60
DG4V-3-2A-M-U-H7-60
DG4V-3-8C-M-U-H7-60
DG4V-3-2AL-M-U-H7-60
DG4V-3-0B-M-U-H7-60
DG4V-3-6C-M-U-H7-60
DG4V-3-2N-M-U-H7-60
DG4V-3-0C-M-U-H7-60
DG4V-3-0A-M-U-H7-60
DG4V-3-7C-M-U-H7-60

Applications:

The DG4V series solenoid valve is widely used in many fields that require high-performance hydraulic control due to its reliable performance.

Industrial machinery: widely used in industrial equipment such as CNC machine tools, injection molding machines, die-casting machines, presses, etc., to control the direction of movement of oil cylinders or hydraulic motors and achieve precise process flow.

Construction machinery and mobile equipment: In the hydraulic system of construction machinery such as excavators and loaders, it is used to control the action switching of actuators such as the boom and bucket, and achieve complex composite actions.

Mining and Heavy Equipment: Suitable for harsh working conditions such as mining machinery (such as crushers, conveyors), its durable design can withstand dust, vibration, and high loads.

Ship and Port Machinery: Hydraulic control systems used for ship deck machinery such as winches and cranes, as well as port lifting equipment. Their corrosion-resistant design can adapt to high humidity and high salinity environments at sea.

Other important fields: In addition, it is also applied in metallurgical equipment, wind power industry, aerospace and other applications that have strict requirements for hydraulic systems.

Support and Services:

The 2 2 Way Solenoid Valve product comes with comprehensive Product Technical Support and Services to ensure smooth operation and optimal performance. Our technical support team is available to assist with any product-related inquiries, troubleshooting, or maintenance needs. Additionally, we offer services such as installation guidance, repair assistance, and product training to help maximize the efficiency and longevity of the solenoid valve.
