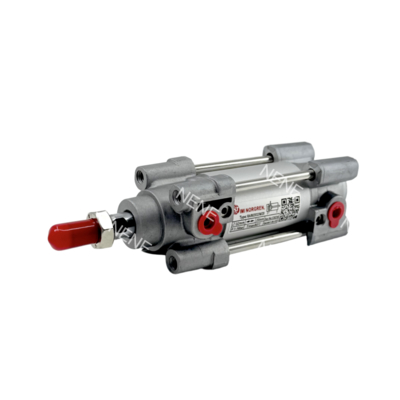

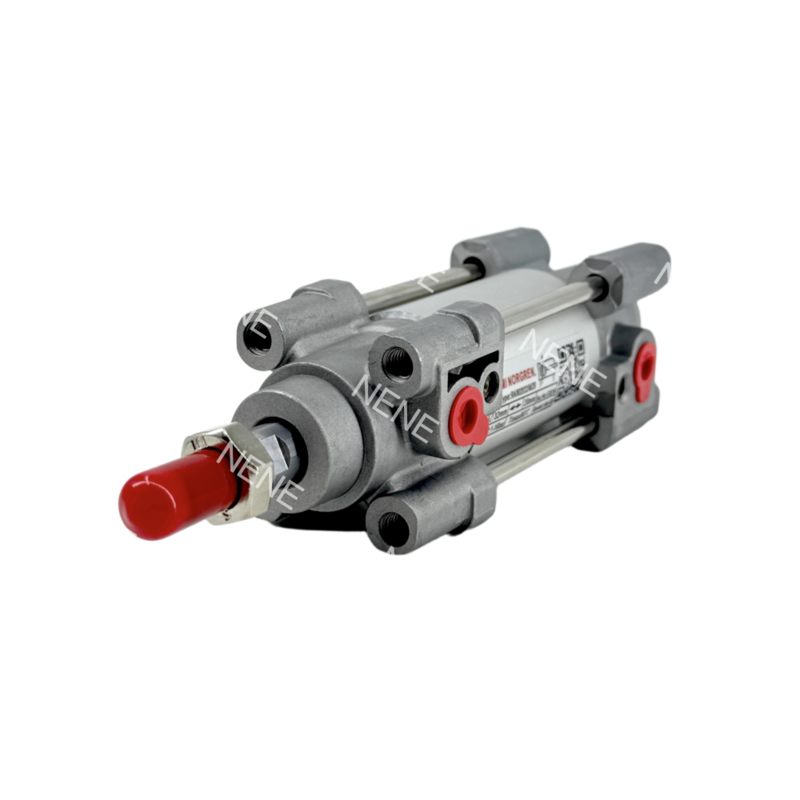

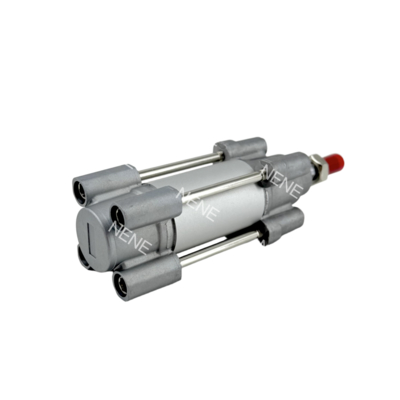

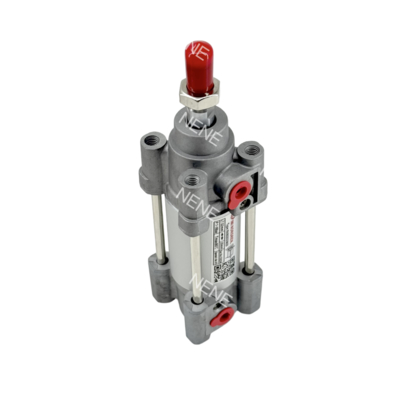

Product Description:
The NORGREN RA/8020 series features a high-performance, compact double acting aluminum alloy cylindrical cylinder . This series is specifically constructed for industrial automation applications that demand reliable linear motion in limited spaces . It is well-known for its versatility, durability , and exceptional value .
Features:
Compact & Powerful: Short-stroke design, offering high force in a small space.
Flexible Mounting: Multiple mounting options (foot, front flange, pivot) for easy integration.
Reliable Performance: High-quality seals and low-friction construction ensure long service life and smooth operation.
Adjustable Cushioning: Built-in adjustable cushions at both ends absorb impact and reduce noise.
Rich Options: Available with magnetic piston (for position sensing) and various bore sizes/rod ends.
| Medium |
Compressed air |
| Operating Temperature |
-20 ... 80 °C, -4 ... 176 °F |
| Operating Pressure |
1 ... 16 bar, 14 ... 232 psi |
| Standard |
ISO 15552 |
| Port Size |
G1/8 |
| Cylinder diameter |
32 mm |
| Stroke Length |
75 mm |
| Operation |
Double acting |
| Cushioning |
Adaptive cushioning system (ACS) |
| Magnetic/Non-magnetic |
Magnetic |
| Theoretical Force |
482 N |
| Materials - Barrel |
Anodised aluminium |
| Materials - Piston Head Seals |
Polyurethane |
| Materials - Piston Rod |
Hard chrome plated steel |
| Country of Origin |
Germany |
| Range |
DA/802000/M |
| Series |
ISOLine |
| Brand |
IMI Norgren |
Applications:
Our company specializes in providing machinery for the positioning, clamping, and ejecting processes in the Packaging, Electronics, and Semiconductor industries.
We offer small automation workstations and robotic end-of-arm tooling (EOAT) to assist with various tasks in production lines.
Our expertise also extends to designing and manufacturing medical devices and analytical instruments that require precise actuation for accurate results.
Additionally, our solutions cater to light-duty, high-cycle applications commonly found in printing and textile machinery for increased efficiency and productivity.
Packing and Shipping:
Product Packaging:
The Piston Pneumatic Cylinder will be carefully packaged in a sturdy cardboard box to ensure its safe delivery. The cylinder will be securely wrapped in protective materials to prevent any damage during shipping.
Shipping:
We offer fast and reliable shipping services for the Piston Pneumatic Cylinder. Once your order is confirmed, the product will be dispatched within 1-2 business days. You can track your shipment using the provided tracking number to monitor its delivery status.
