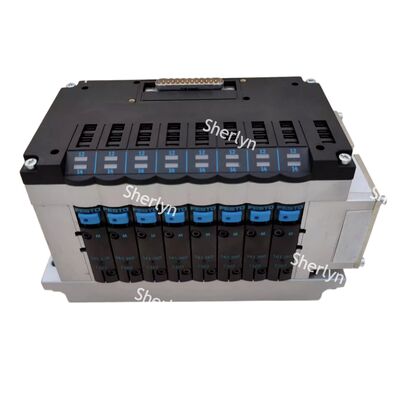

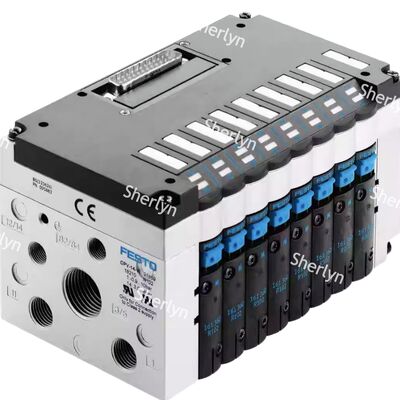

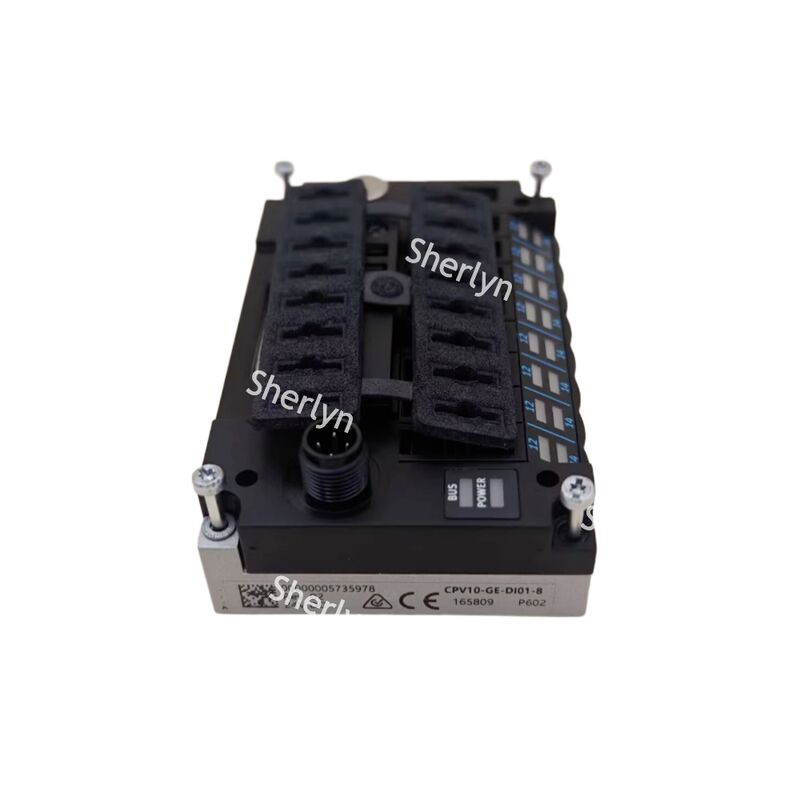

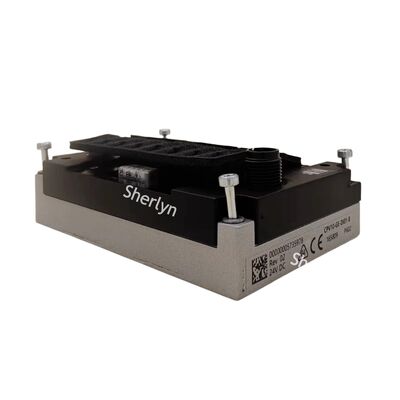

CPV10 Series Festo Solenoid Valve G1 8 Supply Air Pneumatic Valve Designed for Industrial Automation and Control Systems

Product Description:

One of the standout characteristics of this valve series is its exceptional compactness. Each valve plate measures only 10 millimeters in width. Despite its small size, it manages to incorporate the functions of two valves—either dual electric control or a two-position five-way valve—within a very limited installation space. This high integration results in an impressive power density, enabling direct installation close to actuators or equipment modules and significantly reducing the space required in control cabinets.

The CPV10 series employs a modular design that supports flexible assembly. Multiple valve plates, typically ranging from two to eight, can be interconnected based on specific application needs. These valve plates can then be managed centrally through bus nodes, simplifying control. This modular structure facilitates straightforward configuration and future expansion; additional valve plates can be added easily whenever new functionalities are required.

Despite its compact dimensions, the valve series delivers remarkable fluid performance with a standard flow capacity reaching up to 400 liters per minute, sufficient to drive most standard cylinders efficiently. Its ability to be mounted close to the actuator shortens the length of the airflow path, which reduces pressure losses and enhances the cylinder’s response speed significantly.

To meet diverse on-site requirements, the valve series offers an array of electrical interface options:

• Multi-pin Interface: Utilizes multi-core cables to streamline wiring complexity.
• Fieldbus Interface: Supports popular industrial fieldbus protocols such as PROFIBUS-DP, DeviceNet, CANopen, and EtherCAT, allowing easy integration into automation networks.
• AS-i Interface: Ideal for straightforward distributed I/O control scenarios.

The valve island boasts a robust protection rating of IP65, effectively safeguarding against dust ingress and water jets from all directions. This ensures reliable operation even in challenging industrial environments. Moreover, selected models have obtained ATEX explosion-proof certification, making them suitable for hazardous locations with potential explosion risks, including chemical and pharmaceutical industries.

Each valve plate is equipped with an LED status indicator that visually communicates operational states such as activation and faults. Additionally, most models feature manual control options, allowing manual operation during system commissioning, maintenance, or power interruptions. These features greatly simplify troubleshooting and upkeep procedures.

Applications:

The CPV10 valve island is known for its compact design, flexibility, and high reliability. These features make it an ideal choice for automation environments where space efficiency and dependable performance are crucial.

In the realm of general industrial automation, the CPV10 is extensively applied. It supports various applications including packaging machinery, assembly lines, material handling and transportation systems, as well as sorting equipment, ensuring smooth and efficient operation.

When it comes to sectors that demand stringent cleanliness standards, the CPV10 valve island is often utilized. It is commonly found in industries such as electronic assembly, semiconductor manufacturing, medical equipment production, and pharmaceutical packaging, all of which require a high volume of reliable pneumatic control components.

Furthermore, for specialized environmental conditions, explosion-proof versions of the CPV10 are available. These models are suitable for use in chemical and biological industries where the presence of flammable or explosive gases and dust necessitates enhanced safety measures.

Support and Services:

Festo provides comprehensive technical support and services for its Solenoid Valve products to ensure optimal performance and customer satisfaction. Our support includes detailed product documentation, installation guides, and troubleshooting manuals to help you easily integrate and maintain your solenoid valves.

We offer expert advice and consultation services to assist you in selecting the right solenoid valve for your specific application requirements. Our team of specialists is available to provide guidance on compatibility, operating conditions, and customization options.

Festo also provides maintenance services and spare parts to extend the lifespan of your solenoid valves. Regular maintenance recommendations and service kits are available to keep your equipment running efficiently.

For technical issues, our support team can assist with diagnostics, repair procedures, and replacement processes to minimize downtime. We are committed to delivering prompt and effective solutions to support your operational needs.

Additionally, Festo offers training programs and workshops to enhance your understanding of solenoid valve technologies and ensure your team is equipped with the necessary skills for proper handling and maintenance.

Packing and Shipping:

The Festo Solenoid Valve is carefully packaged to ensure maximum protection during transportation. Each valve is individually sealed in anti-static plastic and cushioned with foam inserts within a sturdy cardboard box to prevent damage from shocks and vibrations.

The packaging is clearly labeled with product details, handling instructions, and barcode for easy identification and inventory management.

For shipping, the packages are placed in reinforced cartons with additional padding if multiple units are shipped together. All shipments are handled by trusted carriers to guarantee timely and safe delivery to the customer's location.

Special care is taken to comply with international shipping regulations, ensuring that the Festo Solenoid Valve arrives in perfect working condition, ready for immediate installation and use.
