Product Description:
The diaphragm plays a crucial role in the operation of the pulse valve. When the pulse valve is energized, the captured air above the diaphragm is rapidly released, leading to the quick opening of the main diaphragm valve. On the other hand, when the pulse valve is de-energized, air is released through the bleed hole in the main pulse valve to equalize the pressure on the diaphragm, resulting in the instant closure of the pulse valve.
Applications:
Industrial Control
Pneumatic/hydraulic valves and pump diaphragms are essential components in this sector, commonly crafted from materials like NBR and FKM rubber.
Medical Equipment
In the realm of medical devices, materials such as silicone and PTFE are frequently used in the manufacturing of infusion pumps and ventilator membranes.
Automotive Field
When it comes to automobiles, fuel pumps and exhaust valves often utilize oil and high-temperature resistant materials like HNBR and metal diaphragms for optimal performance.
Energy and Environmental Protection
The energy and environmental sectors rely on specialized components such as proton exchange membranes for fuel cells and membranes designed for seawater desalination.
Consumer Electronics
For consumer electronics, components like speaker diaphragms and pressure sensors are commonly made from silicone and metal to ensure functionality and durability.
| Diaphragm Model No |
Pulse Valve Port Size |
Pulse Valve Model No |
Diaphragm Color |
Diaphragm Material |
MD01-20
MD02-20 |
3/4'' |
TH-5820-B
TH-4820-B
TH-5825-B
TH-5820-C
TH-4820-C |
Red & Green |
NBR |
MD01-25
MD02-25 |
1'' |
TH-4825-B
TH-5825-C
TH-4825-C
TH-5840-F
TH-4840-F |
| MD01-25M |
1'' |
TH-5825-M |
MD01-30
MD02-30
MD03-30 |
1-1/4'' |
TH-5830-B
TH-5430-B
TH-4830-B
TH-4430-B |
| MD03-30M |
TH-5430-M
TH-4430-M |

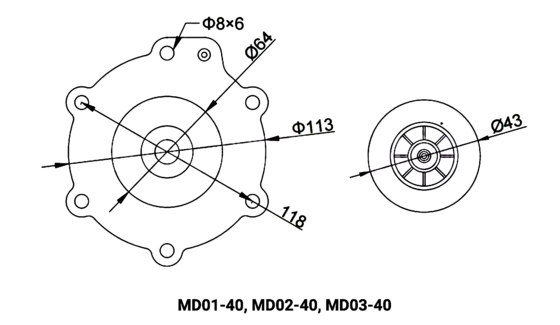

MD01-40
MD02-40
MD03-40 |
1 1/2'' |
TH-5840-B
TH-5440-B
TH-4840-B
TH-4440-B
TH-5840-C
TH-5440-C
TH-4840-C
TH-4440-C
TH-5850-F
TH-5450-F
TH-4850-F
TH-4450-F |
| MD03-40M |
1-1/2'' |
TH-5440-M
TH-4440-M |
| MD03-50 |
2'' |
TH-5450-B
TH-4450-B |
| MD03-50M |
2'' |
TH-5450-M
TH-4450-M |
MD03-60
MD04-60 |
2-1/2'' |
TH-5460-B
TH-4460-B
TH-5460-S
TH-4460-S |
| MD03-75 |
3'' |
TH-5475-B
TH-4475-B |
| MD03-75M |
3'' |
TH-5475-M
TH-4475-M |
| MD03-90M |
3-1/2'' |
TH-5490-M
TH-4490-M |
| MD03-00M |
4'' |
TH-5400-M
TH-4400-M |
Support and Services:
Our Product Technical Support team for the Pulse Valve Diaphragm is dedicated to providing assistance with any technical issues or questions you may have. Our team is knowledgeable about the product and can offer guidance on installation, troubleshooting, and maintenance.
In addition to technical support, we also offer a range of services for the Pulse Valve Diaphragm, including repair and maintenance services. Our skilled technicians can help ensure that your product operates efficiently and effectively over its lifespan.
Packing and Shipping:

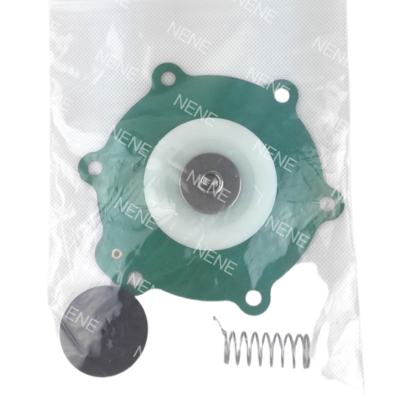

Product: Pulse Valve Diaphragm
Description: High-quality diaphragm replacement for pulse valves.
Package Contents: - 1 Pulse Valve Diaphragm - Instruction Manual
Shipping Information: - Shipping Method: Standard Shipping - Estimated Delivery: 5-7 business days - Shipping Cost: $5.99
