| Μάρκα: | Norgren |
| Πιστοποίηση: | CE |
| Αριθμό μοντέλου: | 3/4 ίντσα |
| Minimum Order Quantity: | 1 |
|---|---|
| Τιμή: | Διαπραγματεύσιμα |
| Packaging Details: | Carton |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 5000 Pieces/1Month |
| Αριθμός MDEL: | 1261253 | Υλικό διάφραγμα: | ΝΒΡ |
|---|---|---|---|
| Υλικό καθίσματος: | νάιλον | Όνομα προϊόντος: | Διάφραγμα βαλβίδας παλμών |
| Θύρα βαλβίδας παλμού μεγέθους: | 3/4 '' | ||
| Επισημαίνω: | Norgren Buschjost pulse valve diaphragm,3/4 inch diaphragm repair kit,Pulse valve diaphragm with warranty |
||
|
Ordering Code
|
Fitted Valve Code
|
Valve Port Size
|
Material
|
|
1261253 (N300)
|
8296300.8171, 8297300.8171
|
3/4''
|
TPE
|
|
1261253 (N400)
|
8296400.8171, 8297400.8171
|
1''
|
TPE
|
|
1261402 (N600)
|
8296600.8171, 8297600.8171
|
1-1/2''
|
TPE
|
|
1268274 (N700)
|
8296700.8171, 8297700.8171
|
2''
|
TPE
|
|
8296800.8171, 8297800.8171
|
2-1/2''
|
TPE
|
|
|
1271526 (N900)
|
8296900.8171, 8297900.8171
|
3''
|
TPE
|

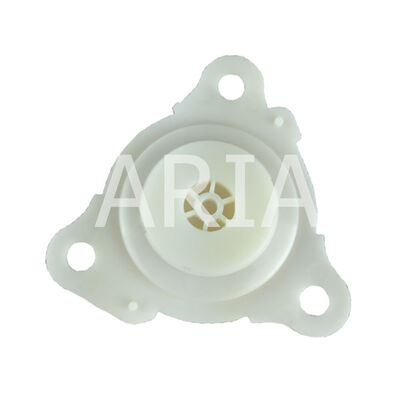

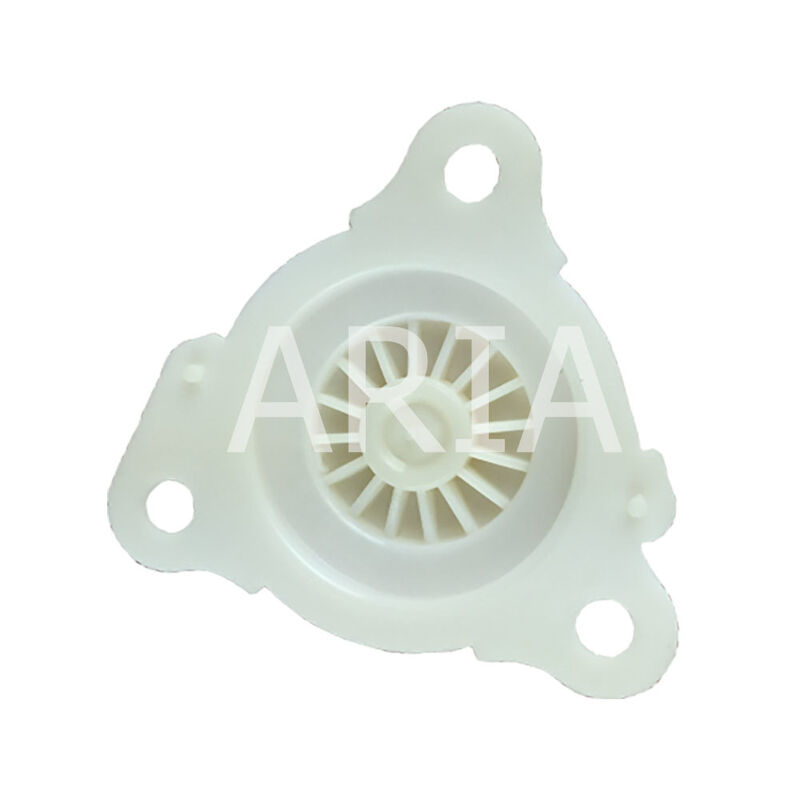

Norgren 1261253 Pulse Valve 8296300 3/4" Diaphragm Repair Kit
Series 82960
1. 2/2-way valves DN 20 to DN 65
2. For air
3. Indirectly solenoid actuated
4. Diaphragm valves
5. Internal thread G 3/4 to G 2 1/2 or 3/4" NPT to 2 1/2" NPT
6. Operating pressure: 0.4 to 8 bar
Description (standard valve)
Switching function: normally closed
Flow direction: determined
Fluid temperature: -40 °C up to max. +85 °C
Ambient temperature: -20 °C up to max. +85 °C
Mounting position: as required, preferably with solenoid vertical on top
Material
Body: Aluminium
Seat seal: TPE
Internal parts: TPU
Product Packaging:
The Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. Each diaphragm is individually wrapped in anti-static and moisture-resistant material to prevent any damage or contamination. The wrapped diaphragms are then placed in sturdy, cushioned boxes designed to absorb shocks and vibrations. Clear labeling is provided on each package for easy identification and handling.
Shipping:
We offer reliable and timely shipping options for the Pulse Valve Diaphragm to meet your requirements. Products are shipped via trusted carriers with tracking available to monitor the delivery status. Depending on your location and urgency, standard and expedited shipping methods are available. All shipments are handled with care to ensure the product arrives in perfect condition and within the estimated delivery timeframe.
